240w - 300w Battery Charger Industrial Power Supplies Power Source Industries

Model Number : 240W-300W battery charger

Certification : UL GS FCC CCC CE

Place of Origin : China Mainland

MOQ : 100pcs

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, D/P, D/A

Delivery Time : 35 days

Packaging Details : PE bag + White box

Size : 190*100*40mm

Standard : UL GS FCC CCC CE

Usage : Golf cart electric wheelchair

Name : 200W power supply

Contact Now

240w - 300w Battery Charger Industrial Power Supplies Power Source Industries

Features :

•Universal AC input:90-264VAC

•used for Golf cart electric wheelchair,Lithium baterry,charge

•PFC built-in,PF>0.95

•Charging mode:3 stage

•Protection: short circuit/ over current

•Compliance to UL GS FCC CCC CE etc.safety standard

•Size:190*100*40mm

Specifications :

MODEL		BC120D20000	BC240D10000	BC36D06700	BC480D05000
Output	DC Voltage/DC	12.0V	24.0V	36.0V	48.0V
	Voltage Range	11.0~14.7V	22.0~29.7V	30.0~44.0V	42.0~60.0V
	Rated Power	300W	300W	300W	300W
	Current Range	0~20.0V	0~10.0V	0~6.7V	0~5.0V
Input	Voltage Range	90-264VAC	90-264VAC	90-264VAC	90-264VAC
	Surge Current	30A	30A	30A	30A
	Efficiency	85%	85%	85%	85%
	PF Factor	≧0.95	≧0.95	≧0.95	≧0.95
Protection	Overload	120%-150% rated output current.Auto recovery after fault condition is removed
	Short Circuit	Auto recovery after fault condition is removed
Envitonment	Working Temperature	-20℃-40℃
	Storage Temperature	-40℃-80℃
Safety & EMC	Safety Standards	UL1310/EN60035
	EMC	EN55014 Class B, FCC part15 class B
Note	All parameters Not specially mentioned are measured at 220VAC input,rated load, 25℃ 70%RH ambient temperature

Quality:

The quality management is strict according to ISO9001 quality management system! All materials and production process completely compliance to Rohs Directive.

Product Tags:

power industrial supplies

power supply industrial

China 240w - 300w Battery Charger Industrial Power Supplies Power Source Industries wholesale

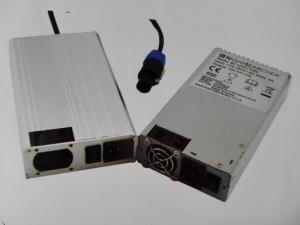

240w - 300w Battery Charger Industrial Power Supplies Power Source Industries Images
